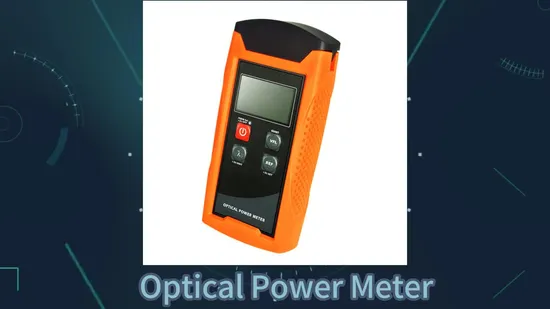

Skycom Optical Fiber Power Meter 350

Basic Info

Model NO.	T-OP350D
Production Capacity	1000PC/Month

Product Description

SKYCOM Optical Power Meter T-OP350D/G

-FC, SC, ST adapters and 2.5mm UPP
-Energy save mode;
-Built in VFL (optional)
-Reference value storage
-850/1300/1310/1490/1550/1625nm

SPECIFICATIONS

Model

TOP350D

T-OP350G

Measurement Range(dBm)

+10~-70dBm

+26~-50dBm

Accuracy *

±5%

Calibrated Wavelengths

850nm / 1300nm / 1310nm / 1490nm / 1550nm / 1625nm

Resolution

0.01dB

OPM Connector

2.5mm UPP and FC interchangeable (SC, ST optional)

Reference Value storage

Yes

Auto Power Off

No operation in 10 minutes (can be canceled), Low battery energy

Battery

3*AA Battery

VFL

2.5mm UPP

TOP350DV05 VFL 5kms

T-OP350GV05 VFL 5kms

GENERAL SPECIFICATIONS

*Size(HWD)*	180mm 100mm 50mm
Weight	about 240g
Storage Temperature	-30 -- +70 ºC 1
Operating Temperature	-10 -- +60 ºC

FAQ
1.Are you a manufacture or trade company?
We are the manufacture with 10 year's history still 2020

2.What is your product's brand?
Our product's brand is SKYCOM

3.What is your main products?
Our main product is Fusion Splicer, OTDR, some fiber tools

4.How can we place order?
After we made agreement on the product parameters, we will make proforma invoice for your confirmation, when we got your payment, we will arrange the production and delivery. If you have your own ship forwarder, we will use your ship forwarder to delivery goods, if you don't have the ship forwarder, we can ship them by our agent shipping company which can offer very competitive freight cost.

5. What is the quality for your product?
All of our productsare with high quality, Our customers from Asia, South America, North America,EU, Africa. We also serve for China Unicom, China Telecom, China Mobile

6. How do you arrange the shipping?
They are two types of shipping methods available, by sea and by air(Express courier-Fedex/DHL/UPS/TNT/EMS,we can ship them according to your express account or ship them by our agent company,the delivery time is about 7 working days.

7. Why choose SKYCOM to cooperate?
We have first-class production line and strict quality management system.
We have professional procedure system and big production capacity to guarantee fast delivery and on time shipment.
We can provide the most competitive price to meet your budget.
We also design and innovation the new products based on our rich experience.
We have professional team to provide comprehensive one-stop service for you.
