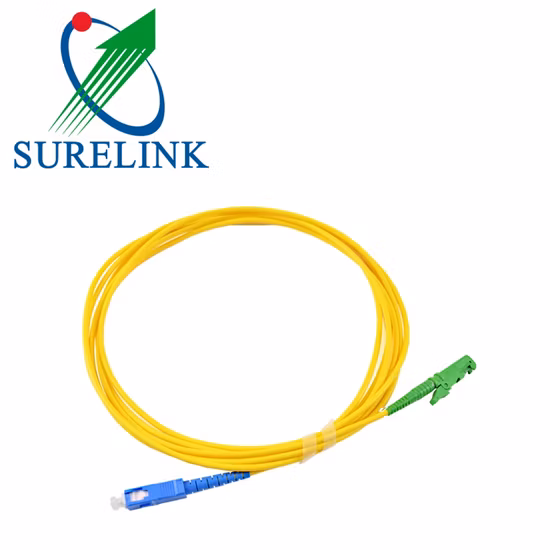

E2000/APC-Sc/Upc-Sm-9/125-Simplex Optical Fiber Patch Cord
E2000/APC-SC/UPC-SM-9/125-SIMPLEX OPTICAL FIBER PATCH CORD Features 1.Low insertion loss and hight return loss. 2.Excell
Description
Basic Info
| Model NO. | E2000/APC-SC/UPC-SM-9/125-SIMPLEX |
| Brand | Surelink |
| Sheath Material | PVC |
| OEM | Available |
| Connector Type | Sc/LC/St/FC |
| Fiber Counts | Simplex/Duplex |
| Cable Length | 1/1.5/3/5/10/20m or Customized |
| Ferrule End Face | PC/Upc/APC |
| Return Loss | > 65dB |
| Insert Loss | < 0.20dB |
| Transport Package | Carton |
| Trademark | SURELINK |
| Origin | China, Guangdong |
| Production Capacity | 300000pieces/Month |
Product Description
E2000/APC-SC/UPC-SM-9/125-SIMPLEX OPTICAL FIBER PATCH CORD
| Technical Parameters |
Features
1.Low insertion loss and hight return loss.
2.Excellent repeatability and changeability
3.Simplex and duplex available.
4.With ceramic fettules.
5.PVC&LSNH cable option.
6.Optical performance 100% factory test.
Specification:
| Item | Single Mode | Multi Mode |
| Insertion Loss | <=0.2dB | <=0.3dB |
| Return Loss | PC≥50dB,UPC≥55dB,APC≥60dB | |
| Insert-pull Test | 1000 times | |
| Repeatability | ≤0.1 | |
| Tensile strength | ≥10KG | |
| Operating Temperature | -40ºC~+85ºC | |
| Ceramic Ferrule Specification | 125.5um concentricity deviations:≤1um | 127um concentricity deviation:≤3um |
| Suitable Fiber | 9/125um | 50/125um,62.5/125um |
Performance Index:
| Item | SM(Single Mode) | MM(Multimode) | |||
| Fiber Cable Type | G652/G655/G657 | OM1 | OM2/OM3/OM4 | ||
| Fiber Diameter (um) | 9/125 | 62.5/125 | 50/125 | ||
| Cable OD (mm) | 0.9/1.6/1.8/2.0/2.4/3.0 | ||||
| Endface Type | PC | UPC | APC | UPC | UPC |
| Typical Insertion Loss (dB) | <0.2 | <0.15 | <0.2 | <0.1 | <0.1 |
| Return Loss (dB) | >45 | >50 | >60 | / | |
| Insert-pull Test (dB) | <0.2 | <0.3 | <0.15 | ||
| Interchangeability (dB) | <0.1 | <0.15 | <0.1 | ||
| Anti-tensile Force (N) | >70 | ||||
| Temperature Range (ºC) | -40~+80 | ||||
Applications
1.Local Area Network (LAN)
2.Data communication network
3.Telecommunication optical transmission network
4.Optical access network(OAN)
5.Active device termination
6.Fiber optics data transmission(FODT)
7.Test Equipment
8.CATV

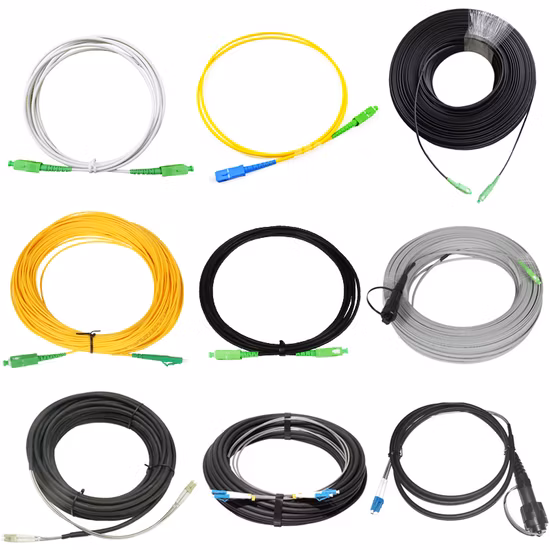

| Related Hot Models |
| Manufacturer Introduction |
Zhuhai Surelink Communication Cable is one of the leading manufacturer in the cablesand telecom accessories. We have more than 20 years experience in this line.Our factory has over twenty production lines and 300 employees. Our productions comply with ISO9001.Professional team,powerful factory and strict quality control give best service to our clients and the quality guarantee in every order. Our products have been widely installed in Telecom companies and many distributors around the world. We export to more than 70 countries and our annual revenue is more than hundreds of million USD. We have established a close relationship with many companies around the world and we sincerely lookforward to woking with all clients from all over the world.
OEM and ODM order highly welcome !
| Workshop and Company Show |
| Package and Delivery |
| Payment and Shipping |
Payment
We usually use T/TT/T deposit before production and balance when shipment.Payment terms: Western Union, Escrow, Paypal, T/T ,L/C
Shipping
If the quantity of the order is not very big, we usually send by express delivery,such as TNT,DHL,UPS,FEDEX or EMS.For big order,we will ship the goods by air or by sea.
