White FTTH Drop Cable Fiber Optic Patch Cord with Connector Sc/APC Sc/Upc 30m

Basic Info

Model NO.	Pre-connector patch cable
Brand	OEM
Length of Cable	25m 50m 75m 100m 150m
Type of Fiber	657A1 657A2 G657b3 G652D
Mode of Fiber	Sm
Insertion Loss	0.25dB
Reture Loss	55 dB
Material	LSZH
Color	White
Transport Package	Cardboard Reel
Specification	0.9mm, 2.0mm, 3.0mm
Trademark	OEM
Origin	China
HS Code	8536700000

Product Description

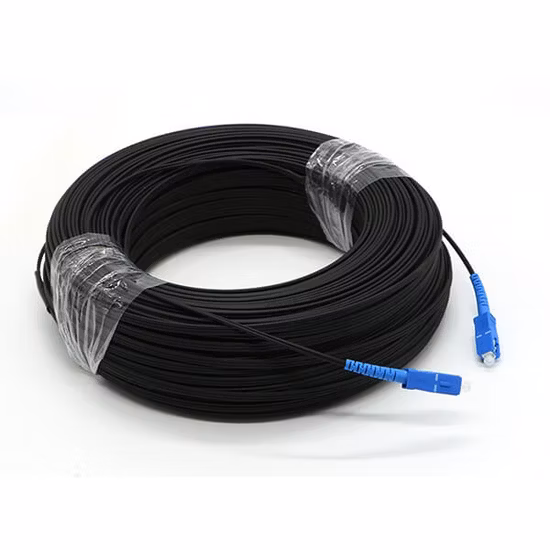

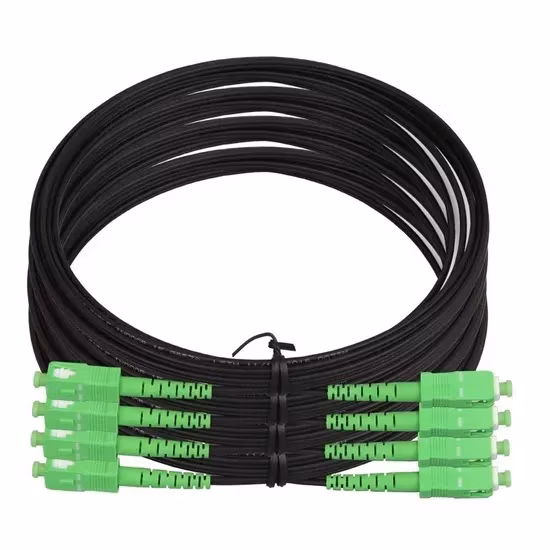

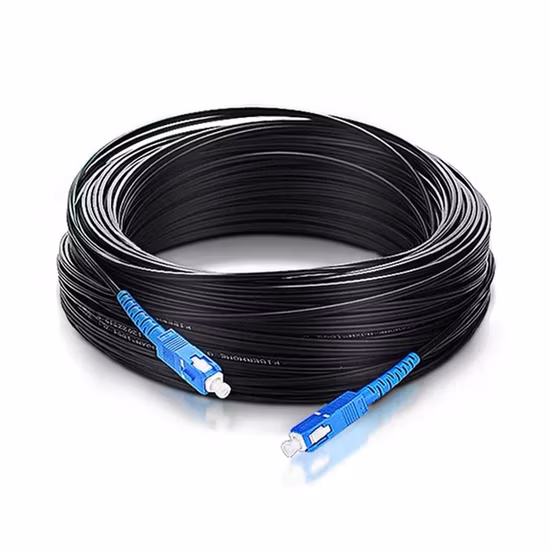

White FTTH Drop Cable Fiber Optic Patch Cord With Connector SC/APC SC/UPC 30M

Description

The FTTH fiber optic drop cable patch cord has two connectors in each end of the cable to make connection; pigtail cable is one cable with a connector. The connectors are with SC type, ceramic ferrule to be polished as UPC . A SM convertion patch cord is with two different connector.We can provide 20m 30m 50m 80m 100m 150m 200m 300m 500m length drop cable patch cord

FeaturesCompliant with international standards such as ANSI, Bellcore, TIA/EIA, IEC, also accord with the industrial standardsof Telecom in ChinaRealize the active link of optic fiber transmissionLow insertion loss and high return lossExcellent repeatability and interchangeability Application

Local Area Network (LAN)

Data communication network

Telecommunication optical transmission network

Optical access network(OAN)

Active device termination

Fiber optics data transmission

Test Equipment and CATV

Gigabit Ethernet

Technical Parameters

Item	Technology parameter

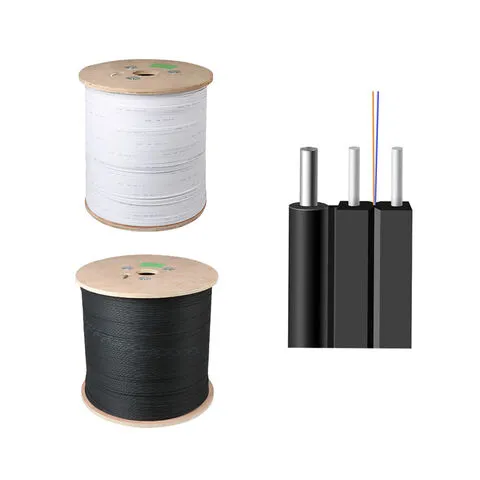

Cable type	GJXFH-1B6
Cable specification	3.0×2.0
Fiber color	Blue
Fiber type	9/125(G657A)
Sheath color	Black
Sheath material	LSZH
Cable dimension mm	3.0(±0.1)*2.0(±0.1)
Cable weight Kg/km	9.5
Min. bending radius mm	15(static) 30(dynamic)
Attenuation dB/km	<= 0.4 at 1310nm , <= 0.3 at 1550nm
Short tension N	80
Short crush N/100mm	1000
Operation temperature ºC	-40~+70
Installation temperature ºC	-5~+60
Transportation and storage temperature ºC	-40~+70
